k8s审计日志
大约 4 分钟
如何开启k8s的审计日志以及如何配置审计日志记录策略、解读k8s的apiserver关于审计日志的源码逻辑，了解loki如何采集日志并且http API接口查看日志.

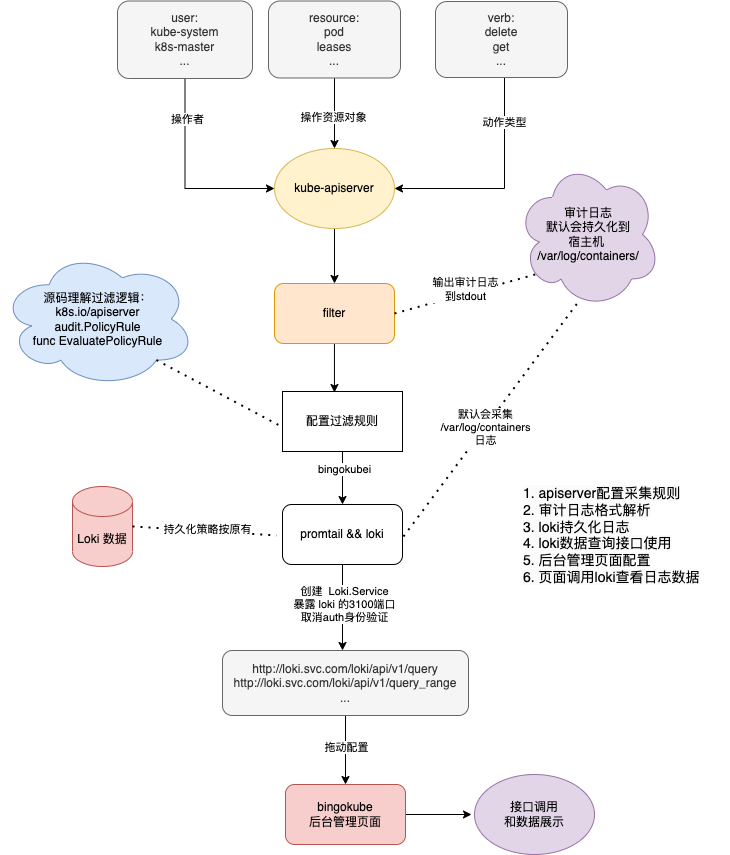

一、loki存档审计日志架构图
二、配置k8s仅仅记录资源的delete edit add，不记录查看动作
// 原始日志结构
{
"kind":"Event",
"apiVersion":"audit.k8s.io/v1",
"level":"", // 日志详细级别
"auditID":"",
"stage":"", // 请求阶段
"requestURI":"",
"verb":"", // 动作 update\get\list\delete\patch
"user":{
"username":"", // 用户名称 kube-system\node:k8s-master
"groups":[] // 所属用户组
},
"sourceIPs":[
"" // 请求IP
],
"userAgent":"",
"objectRef":{
"resource":"", // 资源类型 pods\lease
"namespace":"",
"name":"",
"apiGroup":"",
"apiVersion":""
},
"requestReceivedTimestamp":"",
"stageTimestamp":""
}# /etc/kubernetes/audit/audit-policy.yml
# 通过排除法，特定的角色、资源、动作类型不做记录，其余记录为审计日志
apiVersion: audit.k8s.io/v1
kind: Policy
# 仅仅记录
omitStages:
- "ResponseStarted"
- "ResponseComplete"
rules:
# 排除watch\get\list\
- level: None
verbs: ["watch","get","list","patch"]
# 排除特定角色
- level: None
users: ["system:kube-scheduler","system:apiserver","system:kube-controller-manager"]
# 租约更新不需要
- level: None
resources:
- group: "coordination.k8s.io"
resources: ["leases"]
- level: RequestResponse// 源代码：
// k8s.io/apiserver
// pkg/audit/policy.EvaluatePolicyRule
// 规则验证，自上而下，遇到匹配的规则返回当前的路由日志的处理策略
func (p *policyRuleEvaluator) EvaluatePolicyRule(attrs authorizer.Attributes)
// 规则对象
type audit.PolicyRule三、日志写入策略
日志写入标准输出，标准输出默认挂载至宿主机目录 /var/log/containers/ 的文件 <POD-NAME>_<CONTAINER-NAME>_<CONTAINER-ID>.log 之中，比如 kube-apiserver-k8s-master_kube-system_kube-apiserver-xxx.log 日志文件。
四、创建loki\promtail采集日志
- k8s之中安装loki
- docker安装loki
五、已经搭建好审计日志的服务器
# bingokube
$ 127.0.0.1# 创建service暴露http服务
# loki.svc.yml
apiVersion: v1
kind: Service
metadata:
name: loki-service
namespace: loki
spec:
type: NodePort
selector:
app: loki
ports:
- name: loki-port
protocol: TCP
port: 80
targetPort: 3100
nodePort: 30019# 在机器上直接用pod的IP访问
$ curl 192.100.0.11:3100/loki/api/v1/query
$ curl http://127.0.0.1:30019/loki/api/v1/query# 示例日志查询
http://127.0.0.1:30019/loki/api/v1/query_range?query={container="kube-apiserver"}|json|auditID!=""六、通过http接口查看loki日志
- 查询一段时间范围内的所有指标原始日志
$ curl http://localhost:3101/loki/api/v1/query_range
query={container="evaluate-loki-flog-1"}| json| method="GET"
start=1685531767028752000
end=1685531767029752000
# 原始查询样式
http://localhost:3101/loki/api/v1/query_range?query={container=%22evaluate-loki-flog-1%22}|%20json|%20method=%22GET%22&start=1685531767028752000&end=
### 查询结果
{
"status": "success",
"data": {
"resultType": "streams",
"result": [
{
"stream": {
"bytes": "9822",
"container": "evaluate-loki-flog-1",
"datetime": "31/May/2023:11:29:51 +0000",
"host": "34.255.123.249",
"method": "GET",
"protocol": "HTTP/1.1",
"referer": "https://www.productvisionary.io/extensible/intuitive",
"request": "/utilize/redefine/robust/recontextualize",
"status": "504",
"user_identifier": "-"
},
"values": [
[
"1685534541758917343",
"{"name":"xxx"}"
]
]
},
{
"stream": {
"bytes": "9809",
"container": "evaluate-loki-flog-1",
"datetime": "31/May/2023:11:34:35 +0000",
"host": "142.152.85.195",
"method": "GET",
"protocol": "HTTP/1.1",
"referer": "http://www.humanoptimize.org/syndicate/generate",
"request": "/distributed/syndicate",
"status": "501",
"user_identifier": "aufderhar3522"
},- 查看所有的时间序列(一般一个容器有一个序列)
$ curl http://localhost:3101/loki/api/v1/series七、使用docker搭建loki
- 如何搭建loki服务
mkdir evaluate-loki
cd evaluate-loki
wget https://raw.githubusercontent.com/grafana/loki/main/examples/getting-started/loki-config.yaml -O loki-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/main/examples/getting-started/promtail-local-config.yaml -O promtail-local-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/main/examples/getting-started/docker-compose.yaml -O docker-compose.yaml
docker-compose up -d
http://localhost:3101/ready.
http://localhost:3000
{container="evaluate-loki-flog-1"}Q&A
- 范围查询的start时间格式
func Test_formatTS(t *testing.T) {
type args struct {
ts time.Time
}
tests := []struct {
name string
args args
want string
}{
{
name: "",
args: args{
ts: time.Now().Add(-1 * time.Minute),
},
want: "",
},
}
for _, tt := range tests {
t.Run(tt.name, func(t *testing.T) {
// 1685531472028872000
// 时间戳纳秒格式字符串
if got := strconv.FormatInt(tt.args.ts.UnixNano(), 10); got != tt.want {
t.Errorf("formatTS() = %v, want %v", got, tt.want)
}
})
}
}- http接口查看loki数据时候如何取消身份校验
# 取消验证 disable the auth feature
# https://github.com/grafana/loki/issues/7081
auth_enabled: false- promtail 如何配置采集日志(/var/log) 并且更新helm包
待定，使用已经搭建好的服务先
- 如何获取当前审计日志之中所有user.username有哪些
$ curl http://localhost:3101/loki/api/v1/query?query=count(count_over_time({container="evaluate-loki-flog-1"}[5m] |json)) by (method)
{
"status": "success",
"data": {
"resultType": "vector",
"result": [
{
"metric": {
"method": "DELETE"
},
"value": [
1685534804.433,
"49"
]
},
{
"metric": {
"method": "GET"
},
"value": [
1685534804.433,
"50"
]
}
]
}
}- loki是如何拉取并存储日志的
- 如何配置apiserver将审计日志写入固定的目录被loki采集
因为默认Loki会采集宿主机目录的 /var/log/containers/ 所有日志文件，所以将审计日志写入该文件夹即可。如何配置呢请访问.
